12V T-1275 Deep-Cycle Flooded
Battery Specifications
Capacity Minutes
@25 Amps 280
@56 Amps 102
@75 Amps 70
@56 Amps 102
@75 Amps 70
Capacity Amp-Hours
5-Hr Rate 120
10-Hr Rate 134
20-Hr Rate 150
100-Hr Rate 166
10-Hr Rate 134
20-Hr Rate 150
100-Hr Rate 166
Energy (kWh)
1.99
Dimensions inches (mm)
Length 12.96 (329)
Width 7.13 (181)
Height 11.13 (283)
Width 7.13 (181)
Height 11.13 (283)
Weight lbs. (kg)
85 (39)

T-1275 / Master-Vent

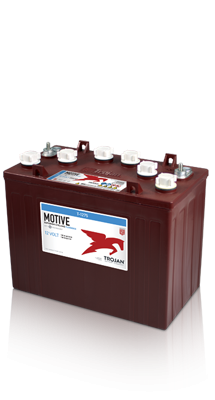

T-1275 / Bayonet

T-1275 / HydroLink
Terminal Types
1. ELPT
Embedded Low Profile Terminal

1. EHPT
Embedded High Profile Terminal
